Rolled Sugar Ice Cream Cone Maker , efficency Waffle Cone Making Machine

Rolled Sugar Ice Cream Cone Maker , efficency Waffle Cone Making Machine

  • Rolled Sugar Ice Cream Cone Maker , efficency Waffle Cone Making Machine
  • Rolled Sugar Ice Cream Cone Maker , efficency Waffle Cone Making Machine
Rolled Sugar Ice Cream Cone Maker , efficency Waffle Cone Making Machine
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-61A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Name: Ice Cream Cone Maker VoltagE: 380V
Total Power: 4.37kw LPG Consumption: 10-12kg/h
Capacity: 3400-3800pcs/h Net Weight: 6000kg
Raw Material: Wheat Flour Application Fields: Beverage Factory
High Light:

automatic ice cream cone making machine

,

ice cream cone manufacturing plant

Rolled Sugar Ice Cream Cone Maker , Efficency Waffle Cone Making Machine

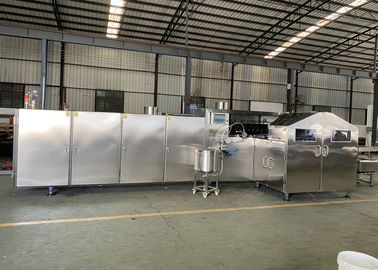

Ice Cream Cone Maker Introduction



Full automatic filling paste, baking, rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit, sugar rolled cone, egg roll

with changing the different forming devices. Best Price Commerical Automatic Sugar Biscuit Ice Cream Cone Making Production Line Rolled Waffle Cone Maker Machine for Sale
The size of the finished cones is within 145mm long can be customized according to customer's

Requirements, such as angle, width, depth, figure, and thickness.



Ice Cream Cone Maker Advantage


1. Easy Operation
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
5. High-efficient heating element ensures ideal production ability.
6. Different types of moulds according to your choice.
7. A relay unit controls baking time.



Ice Cream Cone Maker Working principle:



Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough,then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.



Standard equipment:

1,conveyor

Rolled Sugar Ice Cream Cone Maker , efficency Waffle Cone Making Machine 0

Voltage:220V

Power:0.75kw

Dimension: 5mx0.6mx0.7m



It is used to deliver the finished products to the assembly shop in a neat line.



2,optional equipment : automatic counting machine

Rolled Sugar Ice Cream Cone Maker , efficency Waffle Cone Making Machine 1

Power: 0.75kw

Dimension: 2mx0.9mx0.7m



It is used to automatically stack the molded products of the paper sleeve into a string, and wait for the box according to the set number. The set value is 1-50/string.



Final Products

Rolled Sugar Ice Cream Cone Maker , efficency Waffle Cone Making Machine 2Rolled Sugar Ice Cream Cone Maker , efficency Waffle Cone Making Machine 3



FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .
