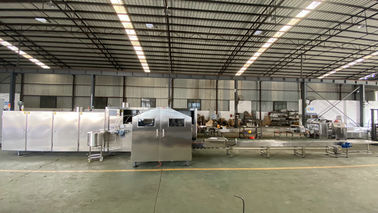

Multifunctional Wafer Cone Production Line / Ice Cream Cone Manufacturing Plant

Multifunctional Wafer Cone Production Line / Ice Cream Cone Manufacturing Plant

  • Multifunctional Wafer Cone Production Line / Ice Cream Cone Manufacturing Plant
  • Multifunctional Wafer Cone Production Line / Ice Cream Cone Manufacturing Plant
Multifunctional Wafer Cone Production Line / Ice Cream Cone Manufacturing Plant
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-61A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Name: Wafer Cone Production Line LPG Consumption: 10-12kg/h
Capacity: 3400-3800pcs/h Net Weight: 6000kg
Function: Multifunctional Raw Material: Wheat, Wheat Flour
Warranty: One Year Material: Stainless Steel
High Light:

wafer cone production line

,

ice cream cone manufacturing plant

,

Ice Cream Cone Manufacturing Plant

Multifunctional Wafer Cone Production Line / Ice Cream Cone Manufacturing Plant



Wafer Cone Production Line Features



1. Our Ice Cream Cone Product Line can also be custom-made to suit your product of different specifications.
2. One bIce Cream Cone Product Line can produce different products like waffle ,egg roll,sugar cone etc.by choosing different moulds.
3. One person operation,convenient and practical. High quality electrical components,temperature control thermostat using Promise.



Wafer Cone Production Line Working principle:

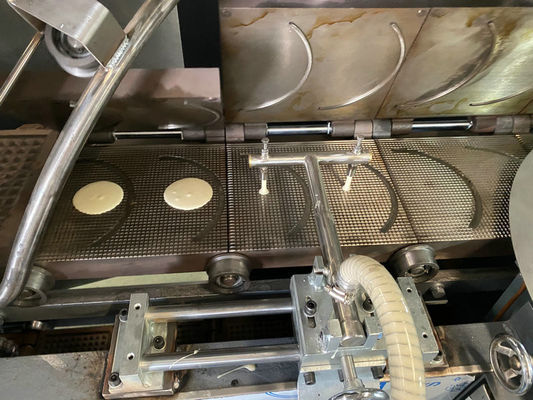

Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough,then put into the oven to bake.After baking ,the paste has forming.Using the manipulator to put it in the mould of rolling to make the finished products.after demould conveyor the products.



Wafer Cone Production Line Parameters



Model Input power Machine dimension weight LPG consumption Baking plate quantity/machine Product size(mm) Output/hour
SD80-61A 4.37kw L9.8xW2.1xH2m 6000kg 10-12kg/h 61 165mm 3400-3800pcs/h





Standard equipment:

1,conveyor

Multifunctional Wafer Cone Production Line / Ice Cream Cone Manufacturing Plant 0

Voltage:220V

Power:0.75kw

Dimension: 5mx0.6mx0.7m



It is used to deliver the finished products to the assembly shop in a neat line.



2,optional equipment : automatic counting machine

Multifunctional Wafer Cone Production Line / Ice Cream Cone Manufacturing Plant 1

Power: 0.75kw

Dimension: 2mx0.9mx0.7m



It is used to automatically stack the molded products of the paper sleeve into a string, and wait for the box according to the set number. The set value is 1-50/string.



Final Products

Multifunctional Wafer Cone Production Line / Ice Cream Cone Manufacturing Plant 2Multifunctional Wafer Cone Production Line / Ice Cream Cone Manufacturing Plant 3



FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:About the machine voltage or power of machine ?

Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.

4. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .



Company Profile



      Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.



In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.



Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.



Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
