| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | SD80-37x2 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | Sufficient supply |
| Name: | Ice Cream Cone Production Line | LPG Consumption: | 6-7kg/h |
|---|---|---|---|
| Heating: | Electric Heating | Total Power: | 3.37kw |
| VoltagE: | 380V | Capacity: | 3500-4000pcs/h |
| Application Fields: | Sugar Biscuit | Warranty: | One Year |
| High Light: | Sugar waffle cone making machine,Biscuit wafer cone production line |
||

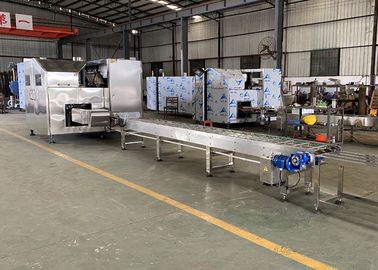

Electric Heating Sugar Biscuit Ice Cream Cone Production Line
Ice Cream Cone Production Line Quick Detail
Full automatic filling paste, baking, rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit, sugar rolled cone, egg roll
with changing the different forming devices. Best Price Commerical Automatic Sugar Biscuit Ice Cream Cone Making Production Line Rolled Waffle Cone Maker Machine for Sale
The size of the finished cones is within 135mm long can be customized according to customer's
Requirements, such as angle, width, depth, figure, and thickness.
Ice Cream Cone Production Line Parameters
| Voltage: | 380v | Product size: |
less than 120mm |
| Total power: | 3.37kw | Output/hour: | 3500-4000pcs/h |
| Machine dimension: | L8XW2.1XH2M | PLC controller: | Schneider |
| Net weight: | 4500kg | Controller: | Schneider |
Our Products
| Model | Input power | Machine dimension | weight | LPG consumption | Baking plate quantity/machine | Product size(mm) | Output/hour |
| SD80-37x2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
| SD80-37A | 3.37kw | L6.6xW2.1xH2m | 3800kg | 5-6kg/h | 37 | 165mm | 1800-2000pcs/h |
| SD80-45x2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
| SD80-61x2 | 4.07kw | L12.2xW2.1xH2M | 7000kg | 16-18kg/h | 61 | 135mm | 6000-7000pcs/h |
| SD80-61A | 4.37kw | L9.8xW2.1xH2m | 6000kg | 10-12kg/h | 61 | 165mm | 3400-3800pcs/h |
| SD80-69x2 | 4.37kw | L13.5xW2.1xH2M | 7800kg | 18-20kg/h | 69 | 135mm | 7000-7500pcs/h |
| SD80-69A | 4.37kw | L11xW2.1xH2m | 6800kg | 14-16kg/h | 69 | 165mm | 3800-4200pcs/h |
Final Products
FAQ
1. Ask:What is your guarantee of machine ?
Answer:usually our guarantee is 1 years.
2. Can you arrange your technicians to install the machine for us?
Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.
3. Ask:About the machine voltage or power of machine ?
Answer:Usually in our country is 220v,50hz, single phase,or 380v,50hz,3 phase.if you have the special requirement,pls tell us, we will vetify the voltage according to your requirement.
4. Ask:how to install the machine ?
Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .
Packaging & Shipping
1. We always use standard export wooden packing,carton box.
2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.
3. We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
