Guang Zhou Jian Xiang Machinery Co. LTD

|
| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | SD80-37Ax2 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | Sufficient supply |
| Name: | Waffle Cone Making Machine | Dimension: | L7mXW2.1mXH2m |
|---|---|---|---|
| Total Power: | 3.37kw | VoltagE: | 380V |
| Capacity: | 3800-4500pcs/h | Application Fields: | Snack Food Factory |
| Material: | Stainless Steel | Produce Size: | <95mm |
| Raw Material: | Wheat, Flour, Flour | ||
| High Light: | Egg Roll ice cream cone maker,8kg/H cone ice cream machine |
||

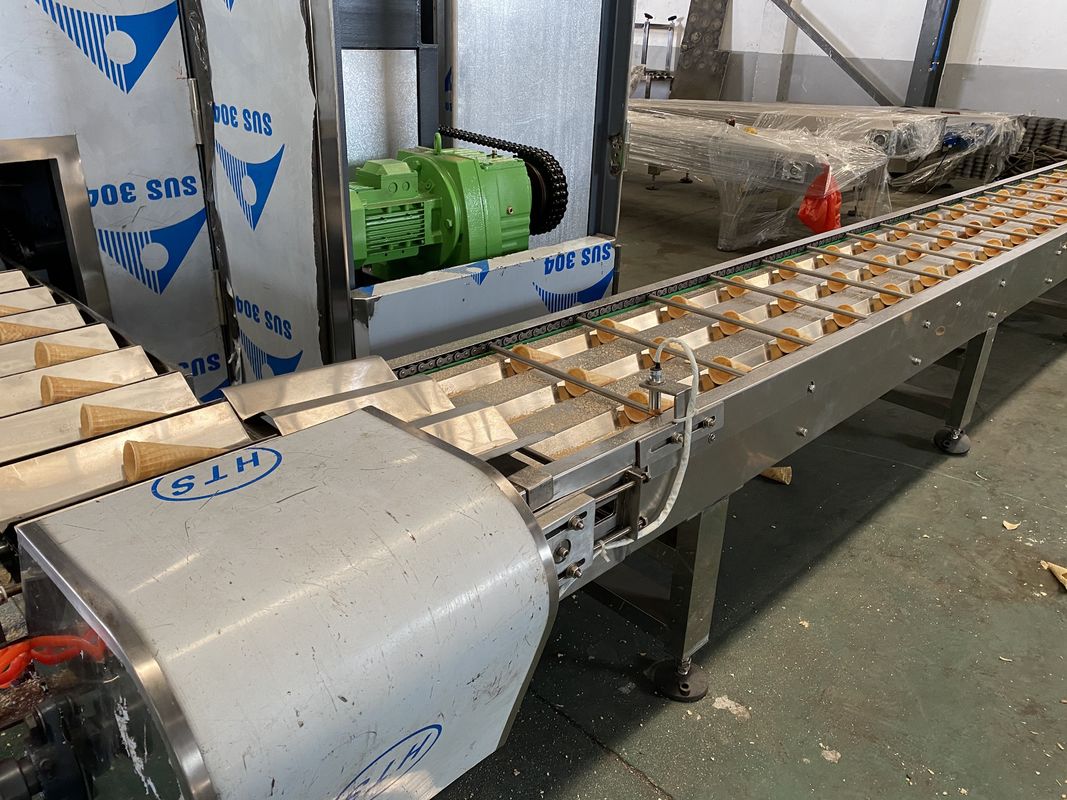

Ice Cream Cone Maker Commercial Egg Roll LPG 8kg/H
We produce many kinds of Ice Cream Cone Product Line ,such as semi-automatic cone machine,automatic cone machines and ice cream cone production line.
We also have the wafer ice cream cone machines,such as for different popular shapes in china and all over the worlds.
Welcome to contact us with your cone pictures,design,size and capacity then we can talk more and suggest you the suitable ice cream cone machines
Waffle Cone Making Machine Parameters
Parameter of Ice Cream Cone Product Line
| Model | GG-37 | GG-45 | GG-55 | GG-65 | GG-75 |
| Capacity | 3000-3500pcs/h | 3500-4000pcs/h | 4500-5000pcs/h | 5500-6250pcs/h | 7000-7500pcs/h |
| Power | 2.2KW, 380V 50Hz 3phase | 3KW, 380V 50Hz 3phase | |||
| Gas consumption | 140cube/24hours | 160cube/24hours | 200cube/24hours | 240cube/24hours | 280cube/24hours |
| Dimension | 6.5*1.8*1.75m | 8*1.85*1.8m | 9*1.9*1.85m | 10*1.9*1.85 | 11*1.9*1.85m |
| Total weight | 4200kg | 4700kg | 5100kg | 6000kg | 7100kg |
Note: As the products are developing day by day, the technical data are subject to change without notice. Different size model can be customized.
Our Products
| Model | Input power | Machine dimension | weight | LPG consumption | Baking plate quantity/machine | Product size(mm) | Output/hour |
| SD80-37x2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
| SD80-37A | 3.37kw | L6.6xW2.1xH2m | 3800kg | 5-6kg/h | 37 | 165mm | 1800-2000pcs/h |
| SD80-45x2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
| SD80-45A | 3.37kw | L8xW2.1xH2m | 4800kg | 7-8kg/h | 45 | 165mm | 2200-2500pcs/h |
| SD80-53x2 | 3.37kw | L10.3xW2.1xH1.8m | 5800kg | 10-12kg/h | 53 | 135mm | 5000-6000pcs/h |
| SD80-53A | 3.37kw | L8.5xW2.1xH2m | 5300kg | 8-10kg/h | 53 | 165mm | 2800-3200pcs/h |
| SD80-61x2 | 4.07kw | L12.2xW2.1xH2M | 7000kg | 16-18kg/h | 61 | 135mm | 6000-7000pcs/h |
| SD80-61A | 4.37kw | L9.8xW2.1xH2m | 6000kg | 10-12kg/h | 61 | 165mm | 3400-3800pcs/h |
Final Products
Waffle Cone Making Machine Quick Detail
We produce many kinds of Automatic Ice Cream Cone Making Machine ,such as semi-automatic cone machine,automatic cone machines and ice cream cone production line.
We also have the wafer ice cream cone machines,such as for different popular shapes in china and all over the worlds.
Welcome to contact us with your cone pictures,design,size and capacity then we can talk more and suggest you the suitable ice cream cone machines.
Waffle Cone Making Machine Feature
energy saving ,high production capacity ,high automation ,high recycle ,having long working life ,convenient operation ,few operators ,up to the national standard of energy saving and no pullution.
Packaging & Shipping
1. We always use standard export wooden packing,carton box.
2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.
3. We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.
Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.
Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
