Home ProductsIce Cream Cone Baking Machine

120mm PLC 4000pcs/H Ice Cream Cone Production Line

120mm PLC 4000pcs/H Ice Cream Cone Production Line

120mm  PLC 4000pcs/H  Ice Cream Cone Production Line
120mm  PLC 4000pcs/H  Ice Cream Cone Production Line
120mm  PLC 4000pcs/H  Ice Cream Cone Production Line
Product Details:
Place of Origin: China
Brand Name: GongHeXiang
Certification: ISO
Model Number: SD80-45x2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Type: Ice Cream Wafer Cone Making Machine Voltage: 380V 50Hz
Input Power: 3.37kw LPG Consumption: 8-10kg/h
Capacity: 4000-5000pcs/h Automatic: Full-automatic
Warranty: One Year Material: Stain Steel
Feature: Stable Key Selling Points: Long Service Life
Marketing Type: Hot Product 2020
High Light:

PLC Ice Cream Cone Production Line

,

120mm Ice Cream Cone Production Line

,

380V Rolled Waffle Cone Maker Machine

Best Price Ice Cream Cone Making Production Line Rolled Waffle Cone Maker Machine for Sale




Ice Cream Wafer Cone Making Machine Working Principle
The whole machine is controlled by Schneider PLC, operated by the main motor, roller , solenoid valve and air fan, the baking plate of the machine is heated, after it shows about 180℃, the mixed batter will be pumped in a certain adjusted amount to the baking plate by the discharging pump, and automatically close the baking plate. The pastry is adjusted in a certain thickness, then the driving wheel drives baking plate into the oven from the upper and lower fire flame nozzle, after baking, the mixed batter has become a pastry, the machine hand accurately put the pastry into the roll mold to form finished product, after de-moulding, the finished product is sent out.

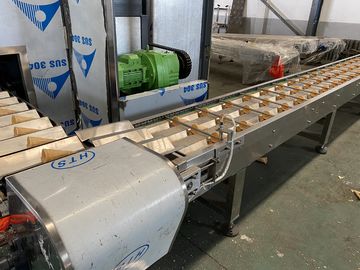

120mm  PLC 4000pcs/H  Ice Cream Cone Production Line 0

Ice Cream Wafer Cone Making Machine Parameters


NameSD80-45x2 Ice Cream Wafer Cone Making Machine
Voltage380vProduct size120mm
Total power3.37kwOutput/hour4000-5000pcs/h
LPG consumption8-10kg/hElectrical accessoriesSchneider
Machine dimensionL8.7xW2.1xH2 MPLC controllerSchneider
Net weight50000kgControllerSchneider



Production process:

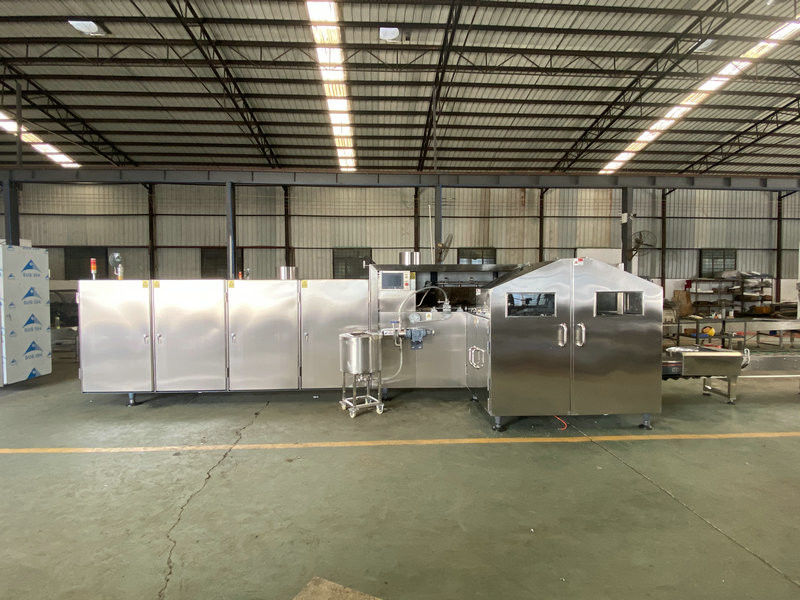

120mm  PLC 4000pcs/H  Ice Cream Cone Production Line 1



Ice Cream Wafer Cone Making Machine Advantage



  1. Easy Operation
  2. High-efficient heating element ensures ideal production ability.
  3. Different types of moulds according to your choice.
  4. A relay unit controls baking time.

After-Sales Service



* Installation, commissioning, training service until the
customer could use the machine independently
* Supply Formulas of Ice Cream
* Experienced ice cream production manager attending
service in customer's Production site
