PLC 3.37kw 65mm Ice Cream Cone Production Line

PLC 3.37kw 65mm Ice Cream Cone Production Line

  • PLC 3.37kw 65mm Ice Cream Cone Production Line
  • PLC 3.37kw 65mm Ice Cream Cone Production Line
PLC 3.37kw 65mm Ice Cream Cone Production Line
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-45x3
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: RAW PACK
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: Sufficient supply
Contact Now
Detailed Product Description
Name: Ice Cream Cone Production Line Dimension: L8.7XW2.1XH2M
Total Power: 3.37kw Capacity: 6000-7500pcs/H
Condition: New Color: Silver
Function: Baking And Rolling Type: Roasting Machine
Feature: Energy Saving Application Fields: Snack Food Factory, Machine For Making Ice Cream Cone
High Light:

65mm Ice Cream Cone Production Line

,

3.37kw Ice Cream Cone Production Line

,

PLC Ice Cream Cone Manufacturing Machine

PLC 3.37kw 6000pcs/H 65mm Mini Rolled Sugar Cone Making Machine







       The whole machine is controlled by schneider PLC, through the main motor startup, roll machine, fan starts, gas start, and the igniter is automatically ignited to heat the baking plate of the machine.Until the temperature shows about 180 degrees,The mixed dough is sent to the bottom plate of the baking plate by the dosing pump, and the panel of the baking plate is automatically closed.The dough is shaped according to the set thickness of the dough, and then the baking plate is driven by the active wheel. Transfer to an oven consisting of upper and lower fire mouths, etc.After baking, the pasta has become a pastry, and the dough is accurately put into a rolling mold by a manipulator it into a finished product, and the finished product is sent out after demolding.

PLC 3.37kw 65mm Ice Cream Cone Production Line 0

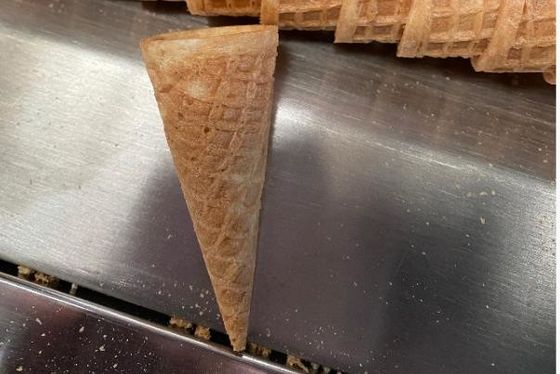

      There are 3 products on a baking sheet, which has a high production capacity. More and more businesses are using these as snacks.



 PLC 3.37kw 65mm Ice Cream Cone Production Line 1

Ice Cream Cone Production Line Parameters



Voltage: 380v Product size: less than 75mm
Total power: 3.37kw Output/hour: 6000-7500pcs/h
LPG consumption: 8-10kg/h Electrical accessories Schneider
Machine dimension: L8.7XW2.1XH2M PLC controller: Schneider
Net weight: 5000kg Controller: Schneider



  Certification:



PLC 3.37kw 65mm Ice Cream Cone Production Line 2



Ice Cream Cone Making Machine Advantage

1.Experience. Our company is specialized in manufacturing and selling the machines for twenty years .
2.Skilled and Professional man-power support.
3.Strict supply - china control, all the outsource parts which use on our machines are all domestic or international famous branded,so it make sure high quality and long lifetime of our machines.

4.Durable innoxious cone mould as per sanitation standard



5.Temperature adjustable.

6.High-efficient heating element ensures ideal production ability.

7.Different types of moulds according to your choice.

8.A relay unit controls baking time.



FAQ



1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.



2. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .



3. Can you arrange your technicians to install the machine for us?

Answer:Yes,Quality guarantee term is for one year. Malfunctions which are caused by machine-self
and quality will be responsible for our manufacturer. Other malfunctions which are caused by
operation mistakes, man-made problems, etc will be responsible for clients-self.



4. Ask: How do you make your price?
Answer:We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.
