| Place of Origin: | China |
| Brand Name: | Gonghexiang |
| Certification: | ISO |
| Model Number: | SD80-37x3 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45DAYS |
| Payment Terms: | T/T |
| Supply Ability: | Sufficient supply |
| Name: | Ice Cream Cone Production Line | Total Power: | 3.37kw |
|---|---|---|---|
| VoltagE: | 380V | Net Weight: | 4700kg |
| Customized: Customized: | Customized | Condition: | New |
| Capacity: | 6000-7000pcs/H | Type: | Roasting Machine |
| Certification: | CE Certificate | Usage: | Food Industry Equipment |
| Key Selling Points: | Long Service Life | Advantage: | Cost-effective |
| High Light: | 7000pcs/H Sugar Cone Baking Machine,75mm Sugar Cone Baking Machine,Multifunctional Sugar Cone Baking Machine |
||

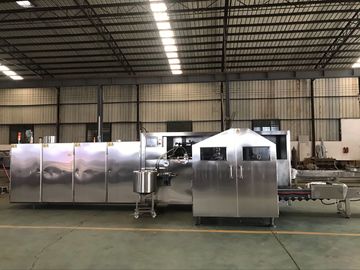

Full automatic 7000pcs/H 75mm Mini Sugar Cone Baking Machine Multifunctional
Good Quality Automatic Rolled Sugar Cone Making Machine/ Ice Cream Cone Machine
Our baking machine can also be custom-made to suit your product of different specifications.
1. The stirred dough is delivered to the baking pans by the slurry pump.
2. The upper and lower plates of the baking plate are automatically closed, and the cakes are baked according to the preset thickness of the cakes.
3. When the baking plate turned to the position of the manipulator(it has been baked already), and the manipulator absorbs the baked cake sends them to the forming mold.
4. The forming mold rolls the cake into a cone shape, and then sends it to the conveyor belt for the arrangement
Ice Cream Cone Production Line Parameters
| Voltage: | 380v | Product size: | less than 80mm |
| Total power: | 3.37kw | Output/hour: | 6000-7000pcs/h |
| LPG consumption: | 7-8kg/h | Electrical accessories | Schneider |
| Machine dimension: | L8XW2.1XH2M | PLC controller: | Schneider |
| Net weight: | 4500kg | Controller: | Schneider |
Process:
1. The stirred dough is delivered to the baking pans by the slurry pump.
2. The upper and lower plates of the baking plate are automatically closed, and the cakes are baked according to the preset thickness of the cakes.
3. When the baking plate turned to the position of the manipulator(it has been baked already), and the manipulator absorbs baked cake sends them to the forming mold.
4. The forming mold rolls the cake into a cone shape, and then sends it to the conveyor belt for the arrangement
Certification:
FAQ
1. Ask:What is your guarantee of machine ?
Answer:usually our guarantee is 1 years.
2. Can you arrange your technicians to install the machine for us?
Answer:Yes,Quality guarantee term is for one year. Malfunctions which are caused by machine-self
and quality will be responsible for our manufacturer. Other malfunctions which are caused by
operation mistakes, man-made problems, etc will be responsible for clients-self.
3. Ask:how to install the machine ?
Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .
