Ice Cream Cone Production Line
Created with Pixso.

Commercial 3800pcs/H Ice Cream Cone Production Line 3 Phase

Commercial 3800pcs/H Ice Cream Cone Production Line 3 Phase

Brand Name: Gonghexiang
Model Number: SD80-53Ax2
MOQ: Negotiable
Price: Negotiable
Payment Terms: T/T
Supply Ability: Sufficient supply
Detail Information
Place of Origin:
China
Certification:
ISO
Name:
Sugar Cone Making Machine​
VoltagE:
380V
Dimension:
L8.8mXW2.1mXH2m
Total Power:
3.37kw
Net Weight:
5300kg
Application Fields:
Commercial
Produce Size:
<95mm
Process:
Thermal Processing
Core Components:
PLC, Engine
Advantage:
Cost-effective
Capacity:
3800-4500pcs/h
Packaging Details:
RAW PACK
Supply Ability:
Sufficient supply
Highlight:

3800pcs/H Ice Cream Cone Production Line

,

Commercial Ice Cream Cone Production Line

,

3 Phase Ice Cream Cone Machine

Product Description

Commercial 3800pcs/H Ice Cream Cone Production Line 3 Phase

Commercial 3800pcs/h Ice Cream Cone Production Line



Commercial 3800pcs/H Ice Cream Cone Production Line 3 Phase 0

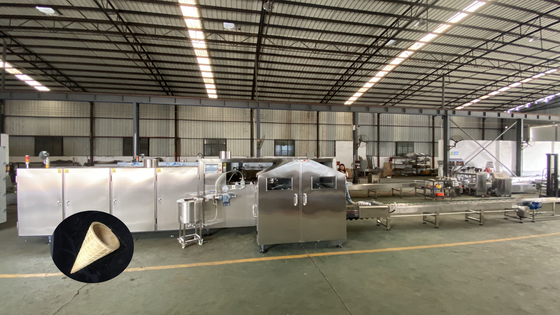

SD80-53Ax2 Ice cream cone biscuit making machine

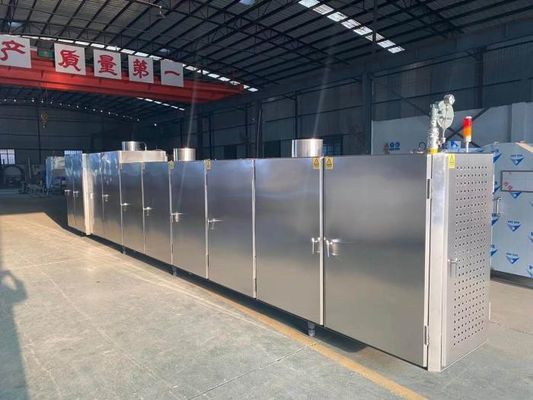

The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds and conveying products.





Waffle Cone Making Machine​ Parameters



Total power: 3.37kw Output/hour: 3800-4500pcs/h
LPG consumption: 5-6kg/h Electrical accessories Schneider
Machine dimension: L7XW2.1XH2M PLC controller: Schneider
Net weight: 3800kg Controller: Schneider



Commercial 3800pcs/H Ice Cream Cone Production Line 3 Phase 1





Product Process:

Commercial 3800pcs/H Ice Cream Cone Production Line 3 Phase 2



After Sale Service



1. Warranty policy one year from shipment

2. We will send you the replacement after received the broken part

3. Evaluate the customs rish and choose safest shipping company before shipping.

4. Follow status up time by time until the goods arrived.







Ice Cream Cone Making Machine Advantage





1. Durable innoxious cone mould as per sanitation standard

2. Temperature adjustable

3. High-efficient heating element ensures ideal production ability.





FAQ

1. Ask:how to install the machine ?

Answer:we can intrust the install the machine by video,email,picture.....if large project,we can arrange the worker help you to install it in your country .



2.Ask: Are you factory or trading company?

Answer: We are a factory in this field nearly 20 years.



3. Ask:Are there any accessories for the purchase of the machine?

Answer:Yes,We will give away random accessories and some installation tools.
