Product Description

The Fully Automatic Sugar Cone Production Line is an industrial, end-to-end manufacturing solution engineered for continuous, high-volume production of crisp sugar cones, ice cream cones, flat-top cones, and natural rim cones. Designed for commercial bakeries, dairy processors, and contract ice cream manufacturers.

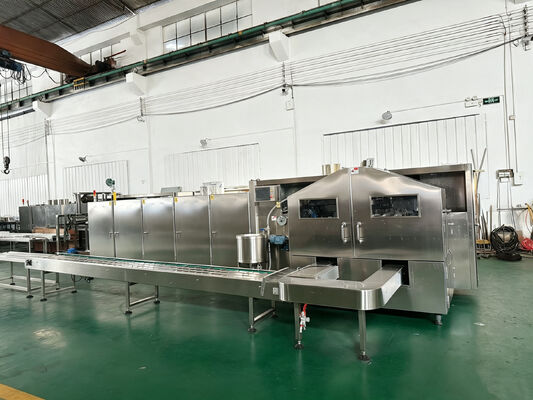

By integrating automatic batter dosing, continuous baking, cone rolling, cooling, conveying, stacking and counting systems, the complete production line enables a smooth and efficient manufacturing process from raw batter to finished cones. The tunnel baking design provides stable temperature control and continuous operation, making it suitable for large-scale ice cream cone factories requiring high output and reliable performance.

By combining SEMENS PLC smart automation with durable cast iron baking plates, this automatic ice cream cone making machine line reduces operational labor by up to 50% while delivering consistent cone weight, precise cone shape, and structural integrity for high-speed ice cream filling lines.

Key Performance Highlights

1. Continuous Tunnel-Type Baking System: Enables stable and uninterrupted production with precise baking temperature control.

2. Throughput Efficiency: High-speed configurations yield 3,000 to 10,000+ pcs/hour, tailored to mid and large-scale manufacturing requirements.

3. Low Energy Consumption: Integrated thermal recycling insulation and high-quality heat-resistant cast iron baking plate help cutting gas consumption.

4. Complete Automatic Production Process: Covers batter depositing, baking, rolling, cooling, conveying, stacking and counting with minimal manual operation.

5. Lower Operating Cost: Reduces dependence on manual labor while improving production efficiency. Only needs 2 workers to operation the entire machine and packing process.

6. Customized Configuration: Production capacity, cone size and machine specifications can be adjusted according to customer requirements.

Step-by-Step Production Process

Phase-1: Batter Dosing & Spreading

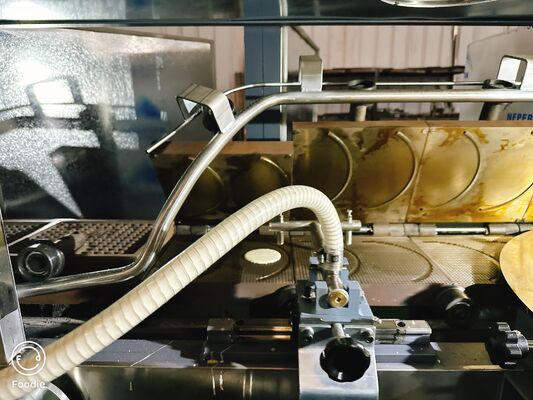

Pre-mix raw ingredients (flour, sugar, lecithin, water, etc.) is depositing onto pre-heated baking plates. The plate closes to compress batter into a uniform wafer sheet.

Phase-2: Controlled Thermal Baking

The baking plates travels through a enclosed oven loop. Gas burners cook the wafer at 160°-180° for a precisely timed cycle (cooking time is controllable, depends on cone size and weight).

Phase-3: Mechanical Stripping & Rolling

The plate opens, and mechnical arms gently detach the soft, flexible wafer sheet. It is immediately transferred into a spinning rolling mandrel that molds the cone shape in fractions of a second.

Phase-4:  Cooling, Stacking & Counting

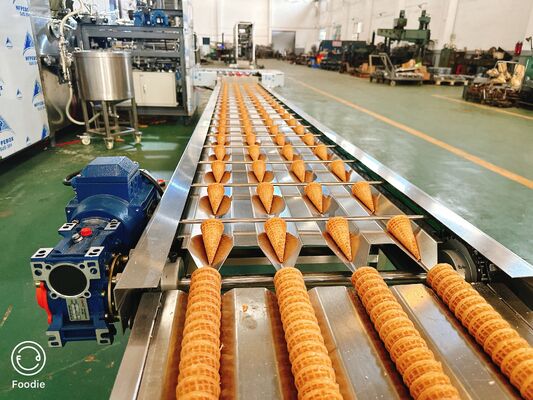

Cones move through a controlled cooling track to set crispiness. Integrated optical sensors count, nest, and group completed cones into customizable stack numbers (e.g., 20, 25, or 50 pieces) ready for sleeve loading or carton packaging.

Technical Parameters

Frequently Asked Questions (FAQ)

Q: What is the production capacity of an automatic sugar cone machine?

A: Our fully automatic sugar cone production lines offer modular capacities ranging from 3,000 to +10,000 cones per hour, depending on the model and the total number of baking plates (25, 37, 45, 63, 79, 85, or 97 plates). Output speed can be controlled via the main PLC interface to match downstream filling or packaging equipment.

Q: What is the main difference between sugar cones and waffle cones in production?

A: Sugar cones are baked as flat wafer sheets with high sugar content and rolled while warm and soft. Waffle cones typically use different grid patterns, lower relative sugar ratios, and larger dimensions.

Q: How long does it take to change molds for producing different cone size?

A: Replacing rolling moulds and adjusting gaps takes approximately 2 to 4 hours with trained technical operators, minimizing downtime between product runs.

Q: Can the line insert paper sleeves automatically?

A: Yes. We offer an optional fully integrated Paper Sleeve Device that can automatically inserts protective paper sleeves into the freshly produced sugar cone for easier carton packing on next step.
