Stainless Steel Productivity Ice Cream Cone Production Line 3.37kw Power 380V

Stainless Steel Productivity Ice Cream Cone Production Line 3.37kw Power 380V

Stainless Steel Productivity Ice Cream Cone Production Line 3.37kw Power 380V
Stainless Steel Productivity Ice Cream Cone Production Line 3.37kw Power 380V
Stainless Steel Productivity Ice Cream Cone Production Line 3.37kw Power 380V
Product Details:
Place of Origin: China
Brand Name: Gonghexiang
Certification: ISO
Model Number: SD80-53x2
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Container
Delivery Time: 45 working days
Payment Terms: T/T, LC
Contact Now
Detailed Product Description
Use: Manufacture Of Sugar Cones Power: 3.37kw
Voltage: 380V Gas Consumption: 10-12kg/hour
Material: Stainless Steel Dimension: 9800*2100*2000mm
Production Capacity: 5000-6000pcs/H Weight: 6000kg
Warranty: One Year Key Work: Rolled Sugar Cone Baking Machine, Ice Cream Cone Produciton Line

Stainless Steel Productivity Ice Cream Cone Production Line 3.37kw Power 380V





Production Description:

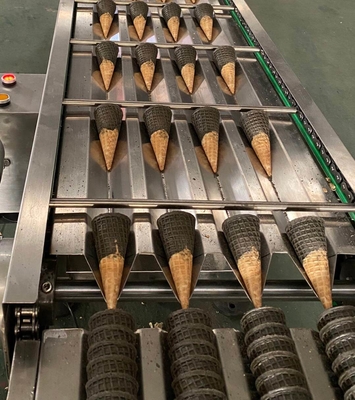

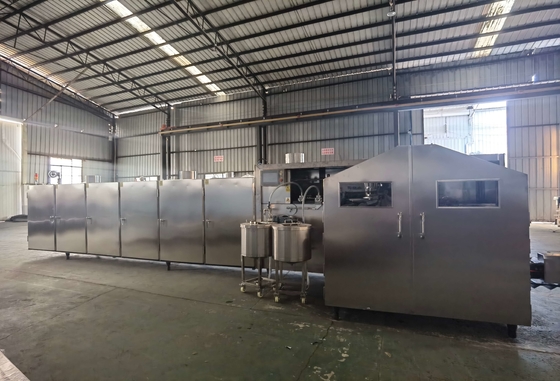

Rolled sugar cone baking machine model SD80-53x2 is a tunnel-type full automatic production line. With high level of automation can increase your productivity, save labor and streamline your operation. Making of high quality material can ensure our machine sturdy and reliable, which can withstand the demands of a busy production season. With gas consumption of 10-12kg/hour, it's efficient and cost-effective to operate. Our machine is controlled by SIEMENS/DELTA PLC system and drive by 3-phase motor, making our machine runs smoothly and efficiently, and it's easy to operate and maintain. It's stable performance can ensure your cones to be consistent and of good looking.



If you are looking for a commercial rolled sugar cone production line to increase your business, contact us to learn more about this top-of-the-line product and how it can benefir your business.



Machine model: SD80-53x2





Technical Parameters:

Product name Automatic rolled sugar cone,ice cream cone baking machine
Control System SIEMENS/DELTA PLC
Input power 3.37kw
Voltage 380V
Production capacity 5000-6000pcs/hour
Gas consumption 10-12kgs/hour
Baking plates size 240mm x 280mm
No. of baking plate 53 pcs
Quantity of cone per baking plate 2pcs/baking plate
Machine measurement 9.8m (L) x 2.1m (W) x 2m (H)
Material Stainless Steel
Weight of Machine 5900kgs
Standard Configuration Batter mixer*1,Heat preservation batter bucket*1,5 meter Conveyor,1.5 meter Storage table
Warranty 1 Year
Place of Origin China





Rolled sugar cone Specification

Cone Shape Flop top cone / Natural hearted shape cone
Cone Length 95-120 (mm)
Cone Angle 15°-26°
Cone Diameter Depends on the length and angle of your cone
Cone Color Customized
Size of engravement Customized



Stainless Steel Productivity Ice Cream Cone Production Line 3.37kw Power 380V 0



Applications:

● High production capacity: up to 5000-6000pcs cone per hour

● Full automatic and requires minimal human intervention, making it an ideal choice for large-scale ice cream production facilities.

● The commercial ice cream cone production line is suitable for businesses that specialize in the production of ice cream cones.

● The machine is designed to produce high-quality cones consistently, which ensures customer satisfaction and retention.

● Easy to use and maintain. It comes with a one-year wattanty that covers any manyfacturing defects.

● Easy to clean, ensuring a hygienic production process.





Support and Services:

To ensure that our customers get the best possible performance out of their equipment, we offer a range of technical support and services:

1. Installation and Commissioning: Our team of experienced engineers will work with you on-side to ensure that your production line is installed and set up correctly, and is fully operational and performing to specifications.

2. Maintenance: We will guide you to perform regular maintenance on machine to ensure that your production line continues to perform at its best.

3. Our engineers team will provide video technical support anytime you need.

4. Training and Consultancy: We provide comprehensive training for your operators and maintenance staff, as well as consultancy services to help you optimize your production processes and maximize efficiency.

5. Spare Parts: We have sufficient spare parts inventory to meet any urgent needs of customers






FAQ:

Q1: What is the brand name of the ice cream cone production line?

A1: The brand name of the ice cream cone production line is Gonghexiang.

Q2: Where is the ice cream cone production line manufactured?

A2: The ice cream cone production line is manufactured in China.

Q3: Does the ice cream cone production line come with any certification?

A3: Yes, the ice cream cone production line comes with ISO certification.

Q4: What are the packaging details for the ice cream cone production line?

A4: The ice cream cone production line is packaged in a container.

Q5: What is the delivery time for the ice cream cone production line?

A5: The delivery time for the ice cream cone production line is 45 working days.

Q6: What are the payment terms for the ice cream cone production line?

A6: The payment terms for the ice cream cone production line are T/T and LC.
